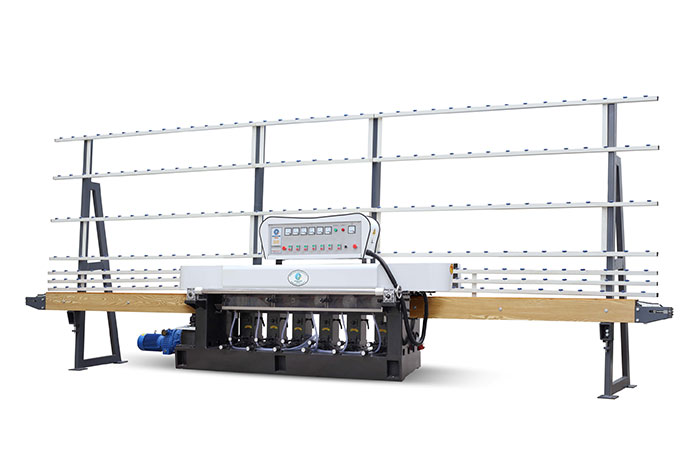

CSQ-6 玻璃直线磨边机
CSQ-6 玻璃直线磨边机

CSQ-6 玻璃直线磨边机适用于不同尺寸和厚度的平板玻璃的直线底边和棱角磨削,粗磨,精磨,抛光一次完成,调整不同加工厚度时,前倒角磨头能随前梁同步移动,具有结构先进,精确度高,操作方便,工作效率高等优点,是玻璃工艺的工具。

CSQ-6 glass straight-line edging machine can complete the coarse grinding;accurate grinding and polishing of straight-line hemline and comer angle at a time with different size and thickness of flat glass.When adjusting the thickness of the different processing,the pre-chamfering grinding head can be moved synchronously as front beam.This equipment is simple to operate and maintain.It is an ideal machine for the complete processing of glass.
欢迎致电137-2465-0828,咨询和订购

产品详情


主要技术参数  MAIN SPECIFICATIONS

磨头数
Quantity of motors
6 sets
磨削速度
Feeding speeds
0.5-5m/min
最小加工面积
Munimum grinding size(alternative)
60×60mm
加工厚度范围
Thickness of the processed glass
3-25mm
功率
Power
16kw
电压
Voltage
380V/50Hz
体积
External dimension(L×W×H)
6.8×1.0×2.5m(L×W×H)
包装大小
Packing size
3.5×1.2×1.5m
重量
Weight
2500kg
